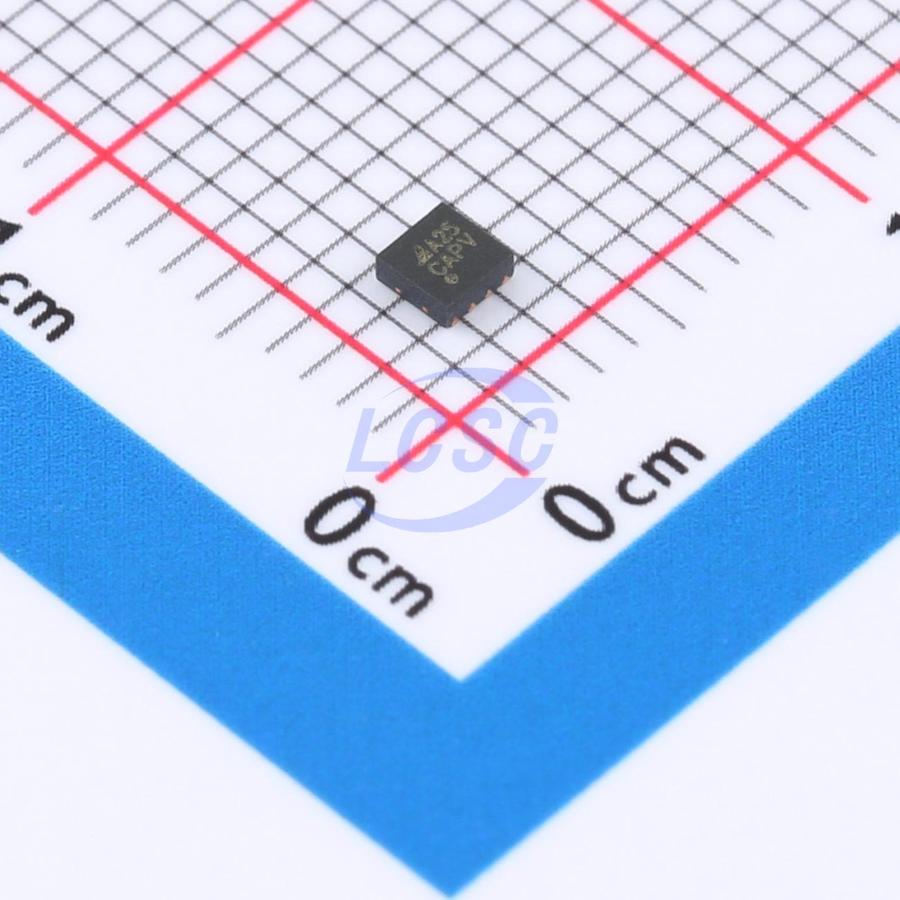

주요 스펙 요약(19)
- Common Mode Rejection Ratio
- 123dB
- features
- -
- Gain Bandwidth Product
- 8GHz
- Ib Input Bias Current
- 23uA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 4uA
- Input Offset Voltage Drift Vos Tc
- 2uV/℃
- Input Offset Voltage Vos
- 1.8mV
- Input Voltage Noise Density
- 1.1nV/√Hz@1MHz
- Maximum Power Supply Range Vdd Vss
- 5.25V
- Number Of Channels
- 1
- Operating Temperature
- -40℃~+125℃
- Output Current
- 85mA
- Quiescent Current
- 19mA
- Rail To Rail
- -
- Slew Rate
- 2.7V/ns
- Dual Supply
- -2.625V~-1.65V;1.65V~2.625V
- package
- DFN-8(2x2)
- Single Supply
- 3.3 to 5.25V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · DFN2X2-8 · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | FB | input | Feedback connection to the output of the amplifier. |
| 2 | NC | no connect | None |
| 3 | IN- | input | Inverting input. |
| 4 | IN+ | input | Non-inverting input. |
| 5 | -VS | power in | Negative power supply. |
| 6 | OUT | output | Output. |
| 7 | +VS | power in | Positive power supply. |
| 8 | /SHDN | input | Shut down input. The device is shut down when the low-level input voltage is on the input; the device is active when the |
절대 최대 정격
| Supply Voltage, (+VS) − (−VS) | 5.5V | |
| Input Voltage | -0.3 to +0.3V | |
| Differential Input Voltage | -5.5 to 5.5V | |
| Input Current: +IN, –IN | -1 to 1mA | |
| Maximum Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40 to 125°C | |
| Supply Voltage Range | 3.3 to 5.25V |
열 특성
- unit
- °C/W
- theta ja
- 100
- theta jc
- 60
등급 · 신뢰성
- esd cdm
- 1.5 kV
- esd hbm
- 2 kV
오더링 코드
- -DF4R-S
- DFN2X2-8 package, -40 to 125°C range
