주요 스펙 요약(19)
- Common Mode Rejection Ratio
- 90dB
- features
- -
- Gain Bandwidth Product
- 10MHz
- Ib Input Bias Current
- 10pA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 10pA
- Input Offset Voltage Drift Vos Tc
- 100nV/℃
- Input Offset Voltage Vos
- 300uV
- Input Voltage Noise Density
- 10nV/√Hz@1kHz
- Maximum Power Supply Range Vdd Vss
- 5.5V
- Number Of Channels
- 2
- Operating Temperature
- -40℃~+125℃
- Output Current
- 135mA
- Quiescent Current
- 1.2mA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Slew Rate
- 8V/us
- Dual Supply
- -2.75V~-1.35V;1.35V~2.75V

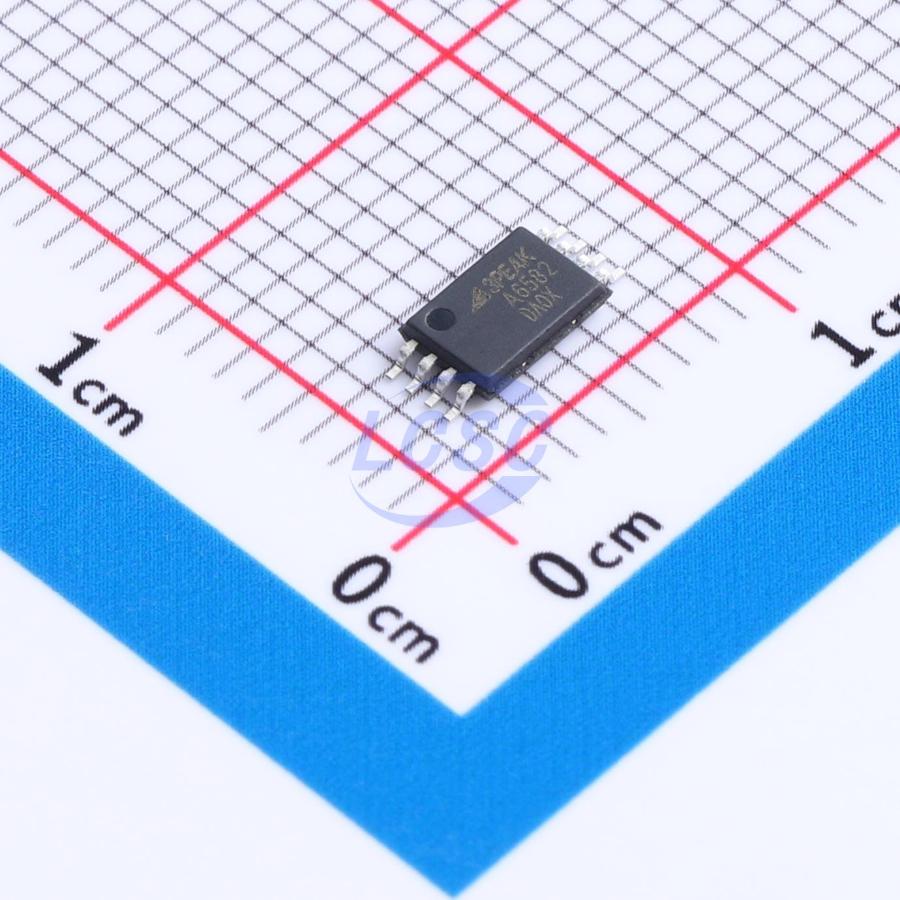

- package
- TSSOP-8
- Single Supply
- 2.7 to 5.5V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · SOT23-5 · 5 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | Out | output | Output |
| 2 | -VS | power in | Negative power supply |
| 3 | +In | input | Non-inverting input |
| 4 | -In | input | Inverting input |
| 5 | +VS | power in | Positive power supply |
절대 최대 정격
| Supply Voltage, (+VS) − (−VS) | 6.5V | |
| Input Voltage | 6.5V | |
| Maximum Junction Temperature | 150°C |
권장 동작 조건
| Supply Voltage Range | 2.7V | min |
| Supply Voltage Range | 5.5V | max |
| Operating Temperature Range | -40°C | min |
| Operating Temperature Range | 125°C | max |
등급 · 신뢰성
- esd cdm
- 1
- esd hbm
- 3
오더링 코드
- -TS1R
