주요 스펙 요약(16)
- Common Mode Rejection Ratio
- 140dB
- features
- Zero drift / auto-zero
- Gain Bandwidth Product
- 3.5MHz
- Ib Input Bias Current
- 200pA
- Input Offset Current Ios
- 100pA
- Input Offset Voltage Drift Vos Tc
- 10nV/℃
- Input Offset Voltage Vos
- 10uV
- Input Voltage Noise Density
- 12nV/√Hz@1kHz
- Number Of Channels
- 1
- Operating Temperature
- -40℃~+125℃
- Output Current
- 60mA

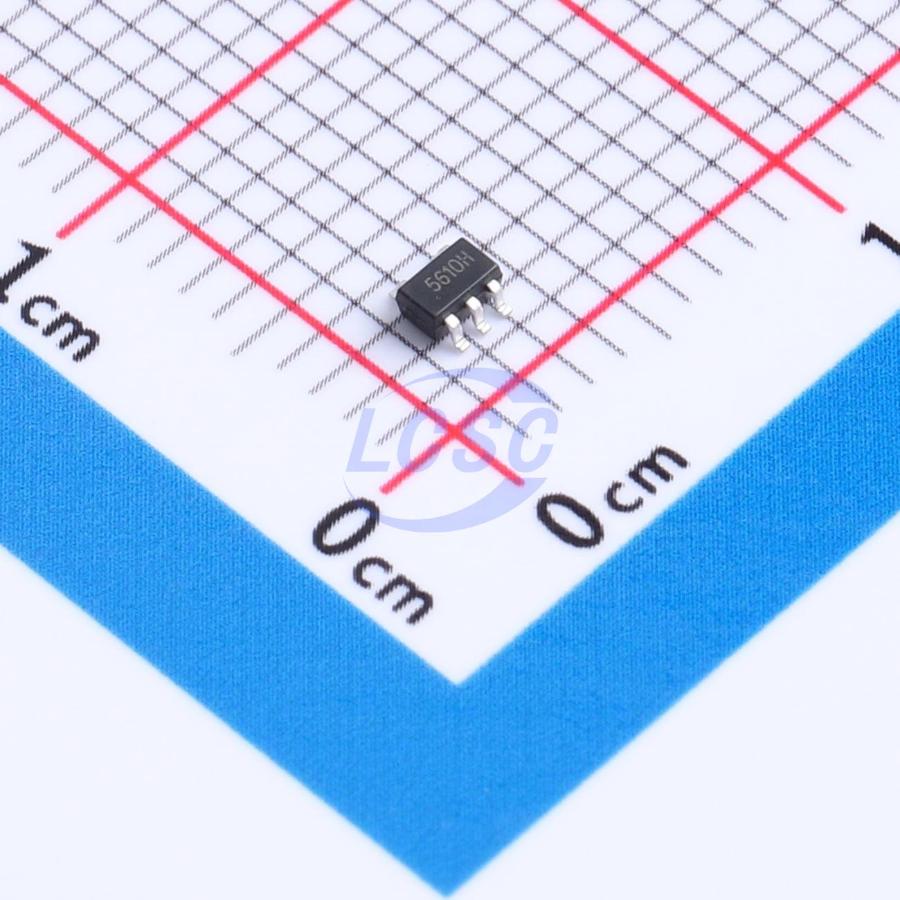

- package
- SOT-353
- Quiescent Current
- 500uA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7 to 5.5V
- Slew Rate
- 4.7V/us
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · SOT353 (SC70-5) · 5 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | Out | output | Output |
| 2 | -Vs | power in | Negative power supply |
| 3 | +In | input | Noninverting input |
| 4 | -In | input | Inverting input |
| 5 | +Vs | power in | Positive power supply |
절대 최대 정격
| Supply Voltage, (+VS) − (−VS) | 6.5V | |
| Input Voltage | -0.3 to +0.3V | |
| Maximum Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40 to 125°C | |
| Supply Voltage Range | 2.7 to 5.5V |
등급 · 신뢰성
- esd cdm
- 1.5
- esd hbm
- 3
오더링 코드
- -SC5R
- SOT353 (SC70-5) Tape and Reel, 3000
