주요 스펙 요약(19)
- Common Mode Rejection Ratio
- 125dB
- features
- -
- Gain Bandwidth Product
- 9kHz
- Ib Input Bias Current
- 200pA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 1.3nA
- Input Offset Voltage Drift Vos Tc
- 25nV/℃
- Input Offset Voltage Vos
- 30uV
- Input Voltage Noise Density
- 354nV/√Hz@100Hz
- Maximum Power Supply Range Vdd Vss
- 3.6V
- Number Of Channels
- 1
- Operating Temperature
- -40℃~+125℃
- Output Current
- 15mA
- Quiescent Current
- 600nA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Slew Rate
- 3V/ms
- Dual Supply
- -1.8V~-850mV;850mV~1.8V
- package

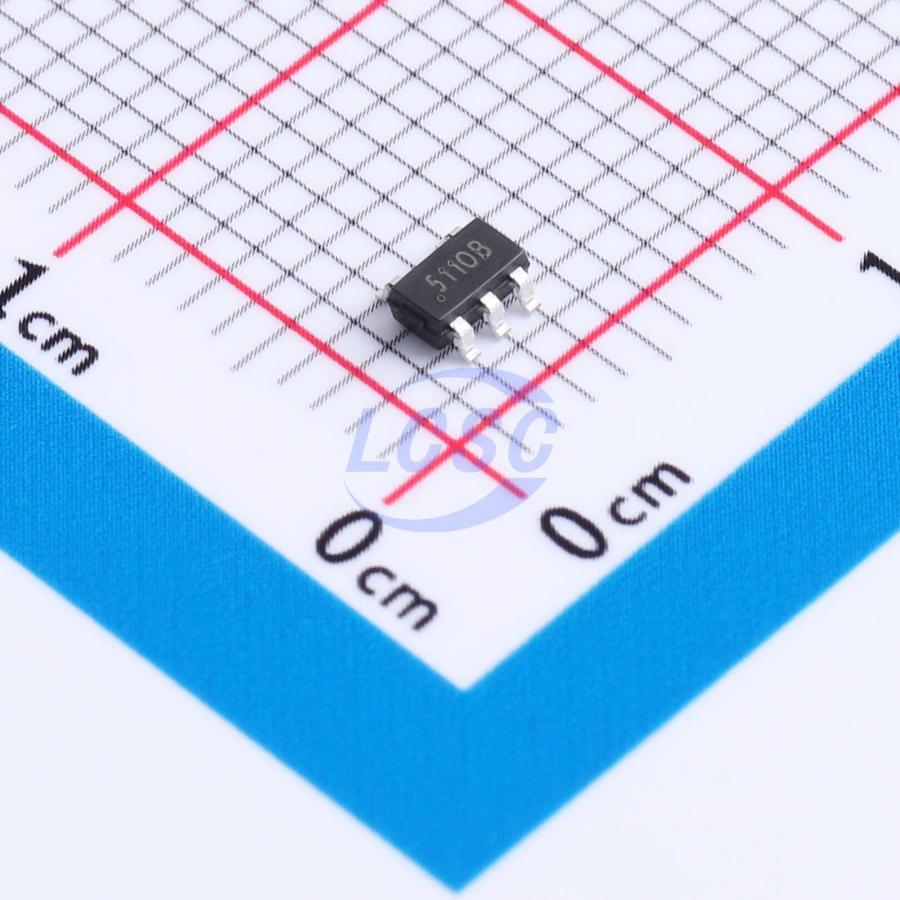

- SOT-23-5
- Single Supply
- 1.7 to 3.6V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · SOT23-5 · 5 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | Out | output | Output |
| 2 | -Vs | power in | Negative power supply |
| 3 | +In | input | Noninverting input |
| 4 | -In | input | Inverting input |
| 5 | +Vs | power in | Positive power supply |
절대 최대 정격
| Supply Voltage, (+VS) – (–VS) | 4V | |
| Input Voltage | 0.3V | max |
| Maximum Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40 to 125°C | |
| Supply Voltage Range | 1.7 to 3.6V |
열 특성
- unit
- °C/W
- theta ja
- 250
- theta jc
- 81
등급 · 신뢰성
- unit
- kV
- esd cdm
- 1.5
- esd hbm
- 3
오더링 코드
- -S5TR
- SOT23-5, Tape and Reel
