주요 스펙 요약(19)
- Common Mode Rejection Ratio
- 120dB
- Dual Supply
- -
- features
- -
- Gain Bandwidth Product
- 20MHz
- Ib Input Bias Current
- 100nA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 100nA
- Input Offset Voltage Drift Vos Tc
- 2uV/℃
- Input Offset Voltage Vos
- 500uV
- Input Voltage Noise Density
- 10nV/√Hz@1kHz
- Maximum Power Supply Range Vdd Vss
- -
- Number Of Channels
- 2
- Operating Temperature
- -40℃~+125℃
- Output Current
- 100mA
- Quiescent Current
- 6mA
- Slew Rate
- 10V/us
- package

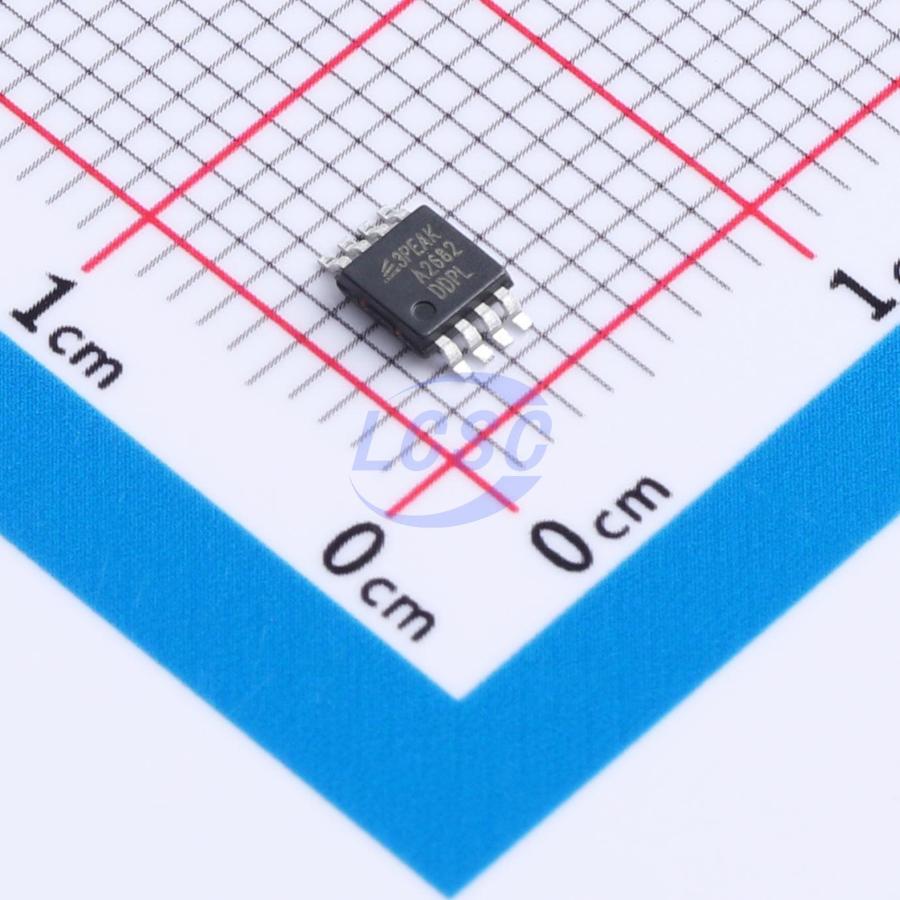

- MSOP-8
- Rail To Rail
- -
- Single Supply
- 8 to 36V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · SOT23-5 · 5 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | Out | output | Output |
| 2 | -VS | power in | Negative power supply |
| 3 | +In | input | Noninverting input |
| 4 | -In | input | Inverting input |
| 5 | +VS | power in | Positive power supply |
절대 최대 정격
| Supply Voltage, (+VS) – (–VS) | 40V | |
| Input Voltage | 40V | |
| Maximum Junction Temperature | 150°C |
권장 동작 조건
| Supply Voltage Range | 8V | min |
| Supply Voltage Range | 36V | max |
| Operating Temperature Range | -40°C | min |
| Operating Temperature Range | 125°C | max |
열 특성
- cond
- SOT23-5
- unit
- °C/W
- theta ja
- 250
- theta jc
- 81
등급 · 신뢰성
- unit
- kV
- esd cdm
- 1
- esd hbm
- 2
오더링 코드
- -VS1R
- SOT23-5
