주요 스펙 요약(19)
- Common Mode Rejection Ratio
- 120dB
- Dual Supply
- -
- features
- Built-in compensation;ESD protection
- Gain Bandwidth Product
- 20MHz
- Ib Input Bias Current
- 100nA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 100nA
- Input Offset Voltage Drift Vos Tc
- 2uV/℃
- Input Offset Voltage Vos
- 500uV
- Input Voltage Noise Density
- 10nV/√Hz@1kHz
- Maximum Power Supply Range Vdd Vss
- 36V
- Number Of Channels
- -
- Operating Temperature
- -40℃~+125℃
- Output Current
- 100mA
- Quiescent Current
- 6mA
- Slew Rate
- 10V/us

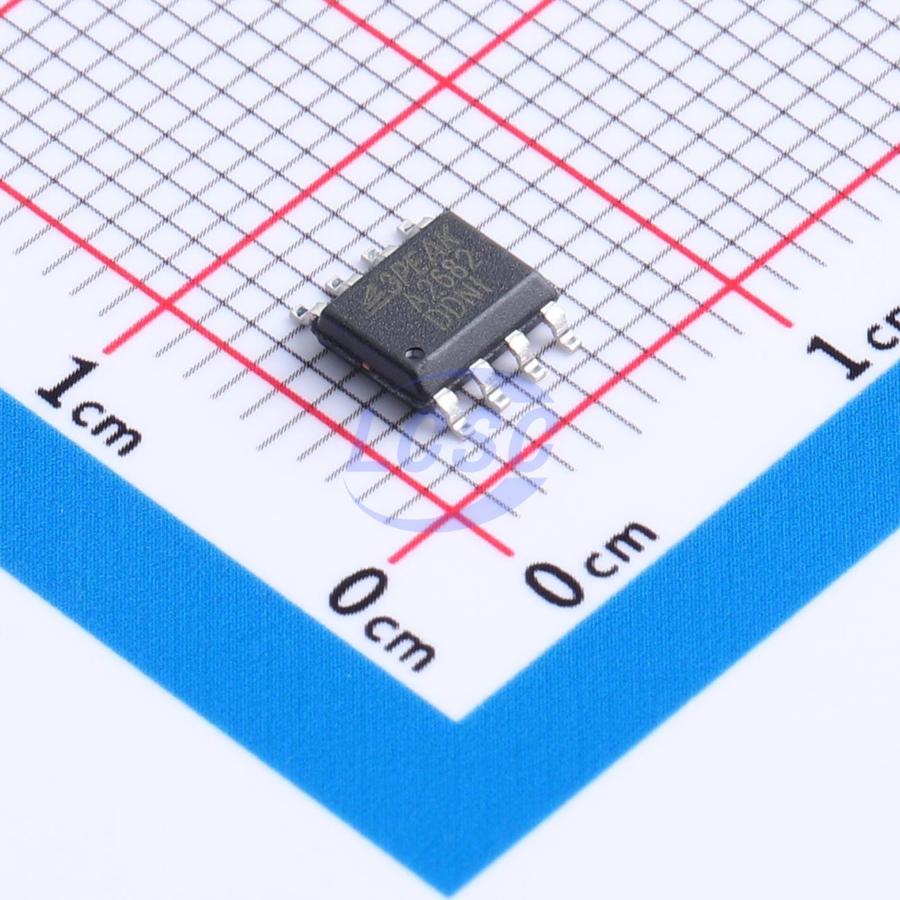

- package
- SOP-8
- Rail To Rail
- -
- Single Supply
- 8 to 36V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)절대 최대 정격
| Supply Voltage: (+VS) – (−VS) | 40V | |
| Input Voltage | 40V | |
| Maximum Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40 to 125°C | |
| Supply Voltage Range | 8 to 36V |
열 특성
- theta ja
- 158
- theta jc
- 43
등급 · 신뢰성
- esd cdm
- 1
- esd hbm
- 2
오더링 코드
- -SO1R
- SOP8 package
