주요 스펙 요약(19)
- Common Mode Rejection Ratio
- 110dB
- features
- ESD protection
- Gain Bandwidth Product
- 10MHz
- Ib Input Bias Current
- 800pA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 800pA
- Input Offset Voltage Drift Vos Tc
- 2uV/℃
- Input Offset Voltage Vos
- 3mV
- Input Voltage Noise Density
- 38nV/√Hz@1kHz
- Maximum Power Supply Range Vdd Vss
- 36V
- Number Of Channels
- 4
- Operating Temperature
- -40℃~+125℃
- Output Current
- 50mA
- Quiescent Current
- 2.4mA
- Rail To Rail
- -
- Slew Rate
- 15V/us
- Dual Supply
- -18V~-2V;2V~18V

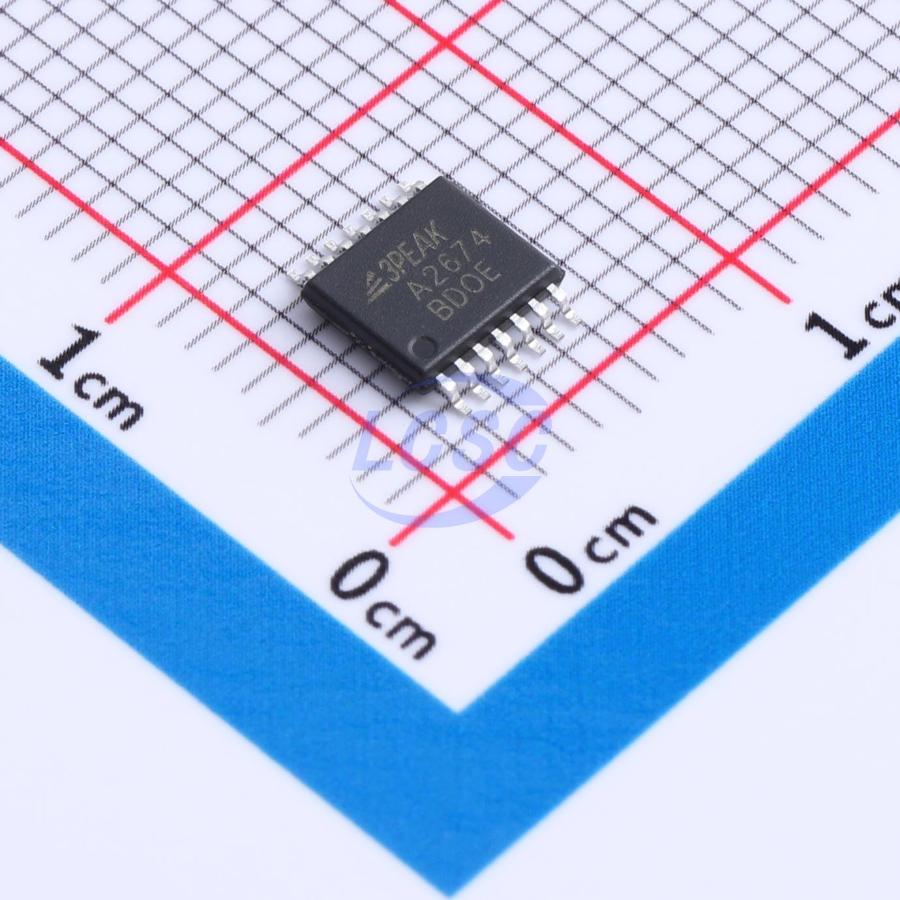

- package
- TSSOP-14
- Single Supply
- 4 to 36V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)절대 최대 정격
| Supply Voltage | 40V | |
| Input Voltage | -0.3 to +0.3V | |
| Maximum Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40 to 125°C | |
| Supply Voltage Range | 4 to 36V |
열 특성
- theta ja
- 180
- theta jc
- 35
등급 · 신뢰성
- esd cdm
- 1
- esd hbm
- 2
오더링 코드
- TS2R
- TSSOP14 Package, Tape and Reel
