주요 스펙 요약(19)
- Common Mode Rejection Ratio
- 110dB
- Dual Supply
- -
- features
- ESD protection
- Gain Bandwidth Product
- 1.5MHz
- Ib Input Bias Current
- 15nA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 1nA
- Input Offset Voltage Drift Vos Tc
- 5uV/℃
- Input Offset Voltage Vos
- 100uV
- Input Voltage Noise Density
- 50nV/√Hz@1kHz
- Maximum Power Supply Range Vdd Vss
- -
- Number Of Channels
- 1
- Operating Temperature
- -40℃~+125℃
- Output Current
- 50mA
- Quiescent Current
- 350uA
- Slew Rate
- 500V/ms

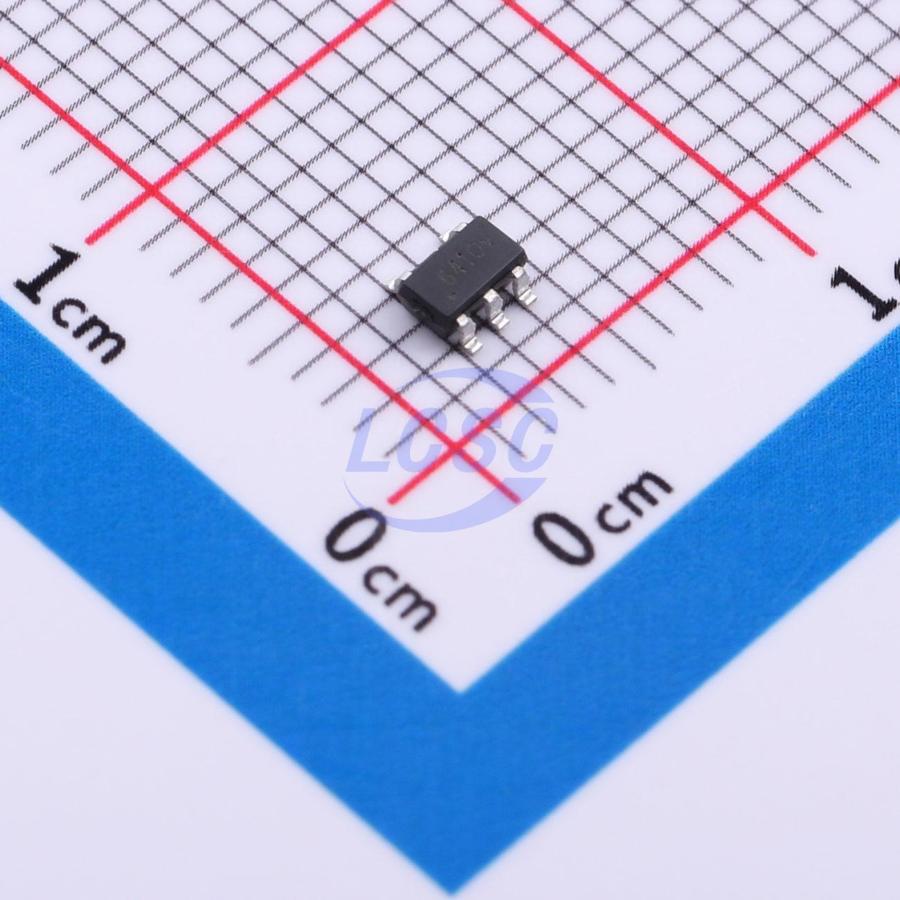

- package
- SOT-23-5
- Rail To Rail
- Rail-to-Rail Input
- Single Supply
- 3 to 36V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 5-Pin SOT23 · 5 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | +In | input | Positive Input |
| 2 | -VS | power in | Negative Supply |
| 3 | -In | input | Negative Input |
| 4 | Out | output | Output |
| 5 | +VS | power in | Positive Supply |
절대 최대 정격
| Supply Voltage, (+VS)– (-VS) | 40V | |
| Input Voltage | 40V | (-VS) – 0.3 to 40V |
| Input Current: +IN, –IN | 10mA | ±10mA |
| Maximum Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40 to 125°C | |
| Supply Voltage Range | 3 to 36V |
열 특성
- unit
- °C/W
- theta ja
- 250
- theta jc
- 81
등급 · 신뢰성
- unit
- kV
- esd cdm
- 1
- esd hbm
- 2
오더링 코드
- -S5TR
- Tape and Reel, 3000
