주요 스펙 요약(17)
- Common Mode Rejection Ratio
- 140dB
- Dual Supply
- -20V~-2.25V;2.25V~20V
- features
- Zero drift / auto-zero;EMI filtering/RF suppression;ESD protection;Latch-up suppression
- Gain Bandwidth Product
- 6MHz
- Ib Input Bias Current
- 100pA
- Input Offset Current Ios
- 100pA
- Input Offset Voltage Drift Vos Tc
- 10nV/℃
- Input Offset Voltage Vos
- 30uV
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Number Of Channels
- 2
- Operating Temperature
- -40℃~+125℃
- Output Current
- 95mA
- Quiescent Current
- 1.4mA
- Rail To Rail
- Rail-to-rail output
- Single Supply
- 4.5 to 40V
- Slew Rate
- 5V/us

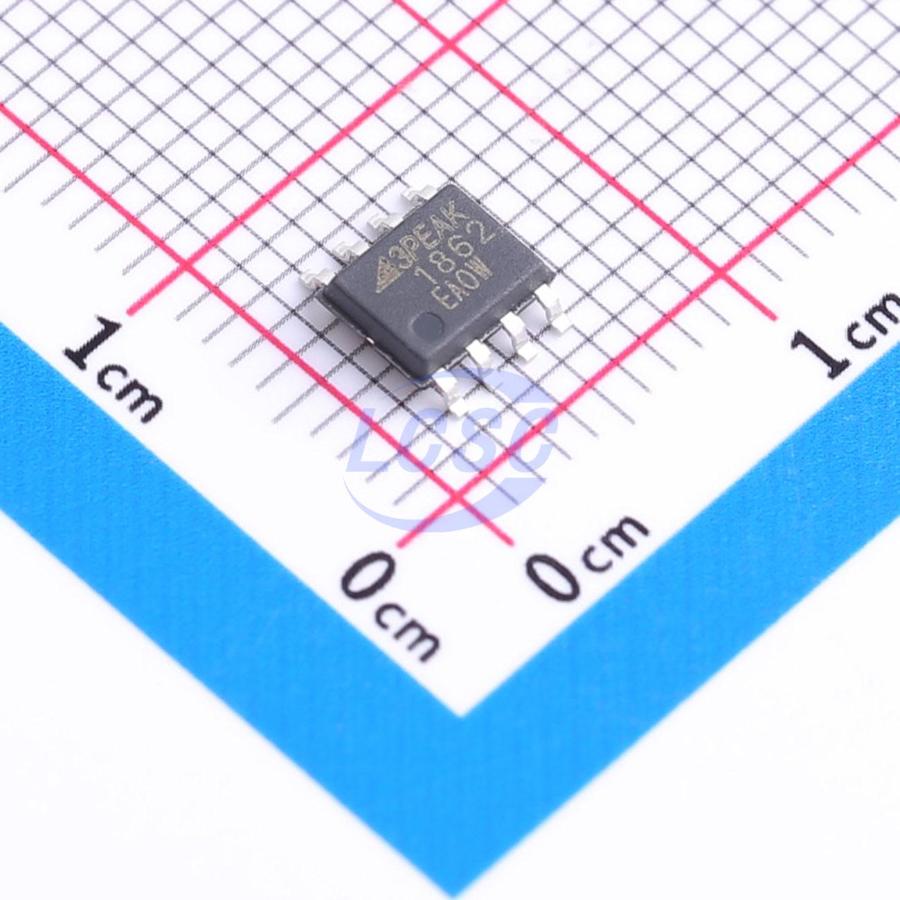

- package
- SOP-8
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · SOP8 · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | Out | output | Output |
| 2 | -Vs | power in | Negative power supply |
| 3 | +In | input | Noninverting input |
| 4 | -In | input | Inverting input |
| 5 | +Vs | power in | Positive power supply |
| 6 | NC | no connect | Not connected |
| 7 | NC | no connect | Not connected |
| 8 | NC | no connect | Not connected |
절대 최대 정격
| Supply Voltage | 42V | |
| Input Voltage | 42V |
권장 동작 조건
| Supply Voltage | 4.5 to 40V | |
| Operating Temperature Range | -40 to 125°C |
열 특성
- theta ja
- 158
- theta jc
- 43
등급 · 신뢰성
- esd cdm
- 1000
- esd hbm
- 2000
오더링 코드
- -SR
- Tape and Reel
