주요 스펙 요약(15)
- Common Mode Rejection Ratio
- 140dB
- features
- Zero drift / auto-zero;EMI filtering/RF suppression;ESD protection;Latch-up suppression
- Gain Bandwidth Product
- 6MHz
- Ib Input Bias Current
- 100pA
- Input Offset Current Ios
- 100pA
- Input Offset Voltage Drift Vos Tc
- 10nV/℃
- Input Offset Voltage Vos
- 30uV
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Operating Temperature
- -40℃~+125℃
- Output Current
- 95mA

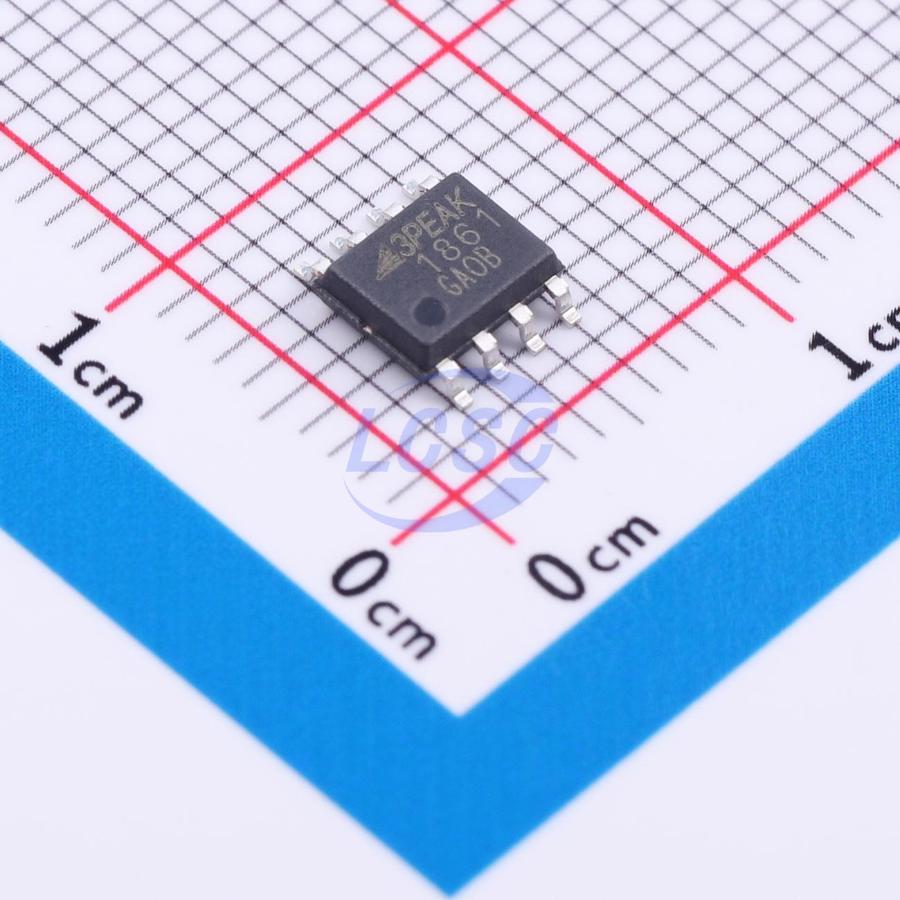

- package
- SOP-8
- Quiescent Current
- 1.4mA
- Rail To Rail
- Rail-to-rail output
- Single Supply
- 4.5 to 40V
- Slew Rate
- 5V/us
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · SOT23-5, SOP8 · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | Out | output | Output. |
| 2 | -VS | power in | Negative power supply. |
| 3 | +In | input | Non-inverting input. |
| 4 | -In | input | Inverting input. |
| 5 | +VS | power in | Positive power supply. |
| 6 | NC | no connect | Not connect. |
| 7 | NC | no connect | Not connect. |
| 8 | NC | no connect | Not connect. |
절대 최대 정격
| Supply Voltage | 42V | |
| Input Voltage | 42V | |
| Maximum Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40 to 125°C | |
| Supply Voltage | 4.5 to 40V |
열 특성
- theta ja
- 250 (SOT23-5), 158 (SOP8), 210 (MSOP8), 120 (SOP14), 180 (TSSOP14)
- theta jc
- 81 (SOT23-5), 43 (SOP8), 45 (MSOP8), 36 (SOP14), 35 (TSSOP14)
등급 · 신뢰성
- unit
- kV
- esd cdm
- 1
- esd hbm
- 2
오더링 코드
- SR
- Tape and Reel
