주요 스펙 요약(15)
- Common Mode Rejection Ratio
- 160dB
- features
- Zero drift / auto-zero
- Gain Bandwidth Product
- 1.1MHz
- Ib Input Bias Current
- 20pA
- Input Offset Current Ios
- 20pA
- Input Offset Voltage Drift Vos Tc
- 10nV/℃
- Input Offset Voltage Vos
- 1uV
- Input Voltage Noise Density
- 32nV/√Hz@1kHz
- Operating Temperature
- -40℃~+125℃
- Output Current
- 62mA
- package

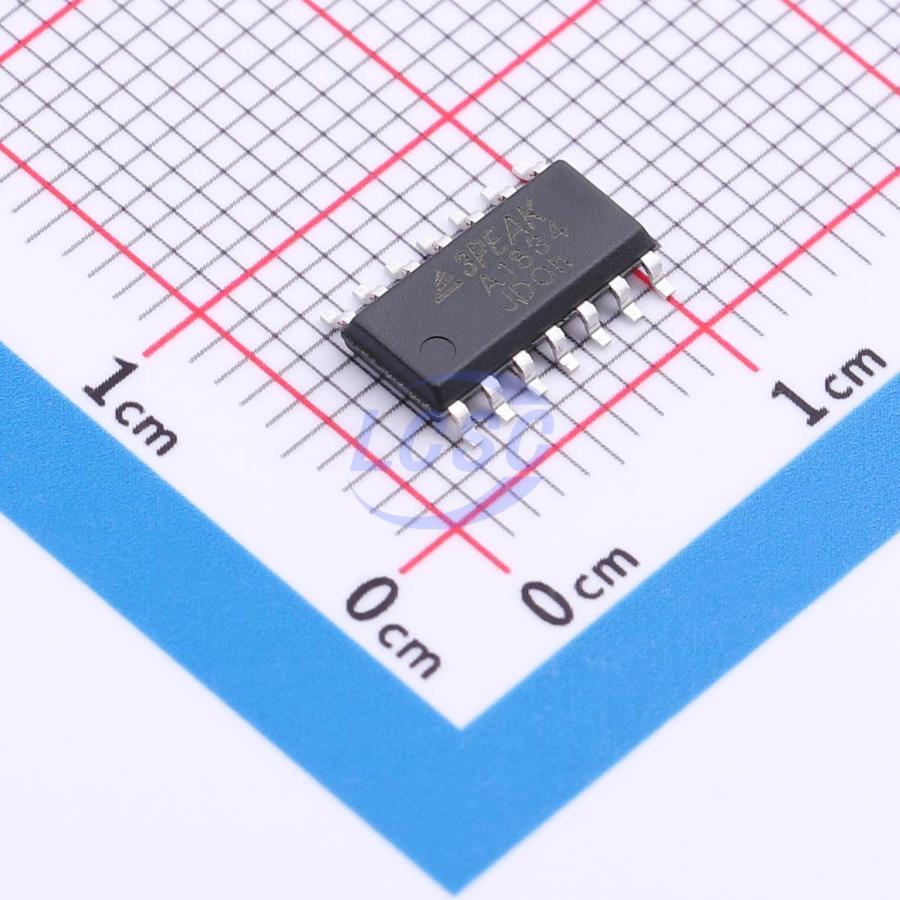

- SOP-14
- Quiescent Current
- 140uA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 4 to 30V
- Slew Rate
- 0.7V/us
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · SOP14 · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | Out | output | Output |
| 2 | -VS | power in | Negative power supply |
| 3 | +In | input | Noninverting input |
| 4 | -In | input | Inverting input |
| 5 | +VS | power in | Positive power supply |
| 6 | NC | no connect | Not connected |
| 7 | NC | no connect | Not connected |
| 8 | NC | no connect | Not connected |
절대 최대 정격
| Supply Voltage, (+VS) – (–VS) | 32V | |
| Input Voltage | 32V |
권장 동작 조건
| Operating Temperature Range | -40 to 125°C | |
| Supply Voltage, (+VS) – (−VS) | 4 to 30V |
열 특성
- theta ja
- 120
- theta jc
- 36
등급 · 신뢰성
- esd cdm
- 1.5
- esd hbm
- 2
오더링 코드
- -SO2R
- SOP14
