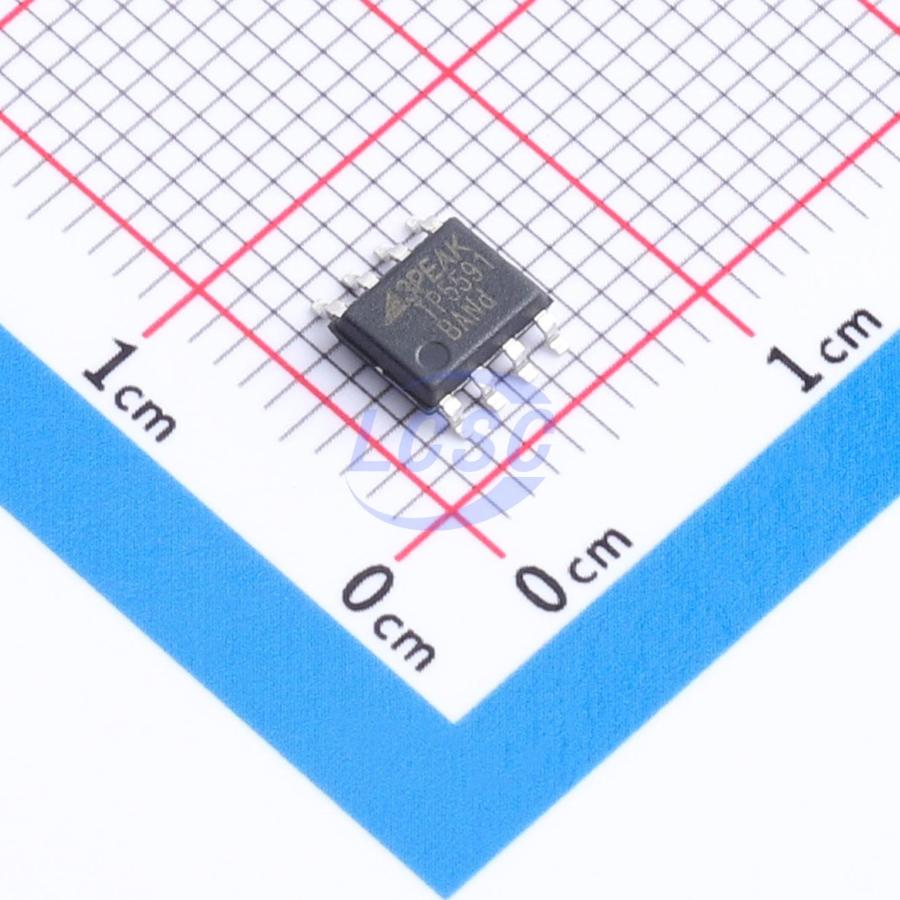

주요 스펙 요약(16)
- Common Mode Rejection Ratio검증
- 127dB
- features
- Zero drift / auto-zero;ESD protection
- Gain Bandwidth Product
- 3.3MHz
- Ib Input Bias Current
- 60pA
- Input Offset Current Ios
- 100pA
- Input Offset Voltage Drift Vos Tc
- 10nV/℃
- Input Offset Voltage Vos
- 5uV
- Input Voltage Noise Density
- 17nV/√Hz@1kHz
- Number Of Channels검증
- 1
- Operating Temperature
- -40℃~+125℃
- Output Current
- 60mA
- package
- SOP-8
- Quiescent Current
- 1.2mA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply검토
- 1.8 to 5.5V데이터시트: true (p.1)
- Slew Rate검증
- 2.5V/us
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · SOT23-5/SOT353 (SC70-5) · 5 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | Out | output | Amplifier output. The voltage range extends to within mV of each supply rail. |
| 2 | -Vs | power in | Negative power supply. It is normally tied to GND. |
| 3 | +In | input | Non-inverting input of the amplifier. |
| 4 | -In | input | Inverting input of the amplifier. |
| 5 | +Vs | power in | Positive power supply. Typically, the voltage is from 1.8 V to 5.5 V. |
절대 최대 정격
| Supply Voltage | 6V | |
| Input Voltage (-Vs) | -0.1V | |
| Input Voltage (+Vs) | +0.1V | |
| Input Current: +IN, -IN | -20/+20mA | |
| Output Current: OUT | -60/+60mA | |
| Current at Supply Pins | -50/+50mA | |
| Maximum Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40 to 125°C | |
| Storage Temperature Range | -65 to 150°C |
열 특성
- theta ja
- 158
등급 · 신뢰성
- esd cdm
- 2kV
- esd hbm
- 7kV
오더링 코드
- -SR
- SOP8 package
