주요 스펙 요약(15)
- Common Mode Rejection Ratio
- 120dB
- features
- Zero drift / auto-zero;ESD protection;Built-in compensation
- Gain Bandwidth Product
- 350kHz
- Ib Input Bias Current
- 50pA
- Input Offset Current Ios
- 100pA
- Input Offset Voltage Vos
- 1uV
- Input Voltage Noise Density
- 55nV/√Hz@1kHz
- Number Of Channels검증
- 2
- Operating Temperature
- -40℃~+125℃
- Output Current
- 60mA

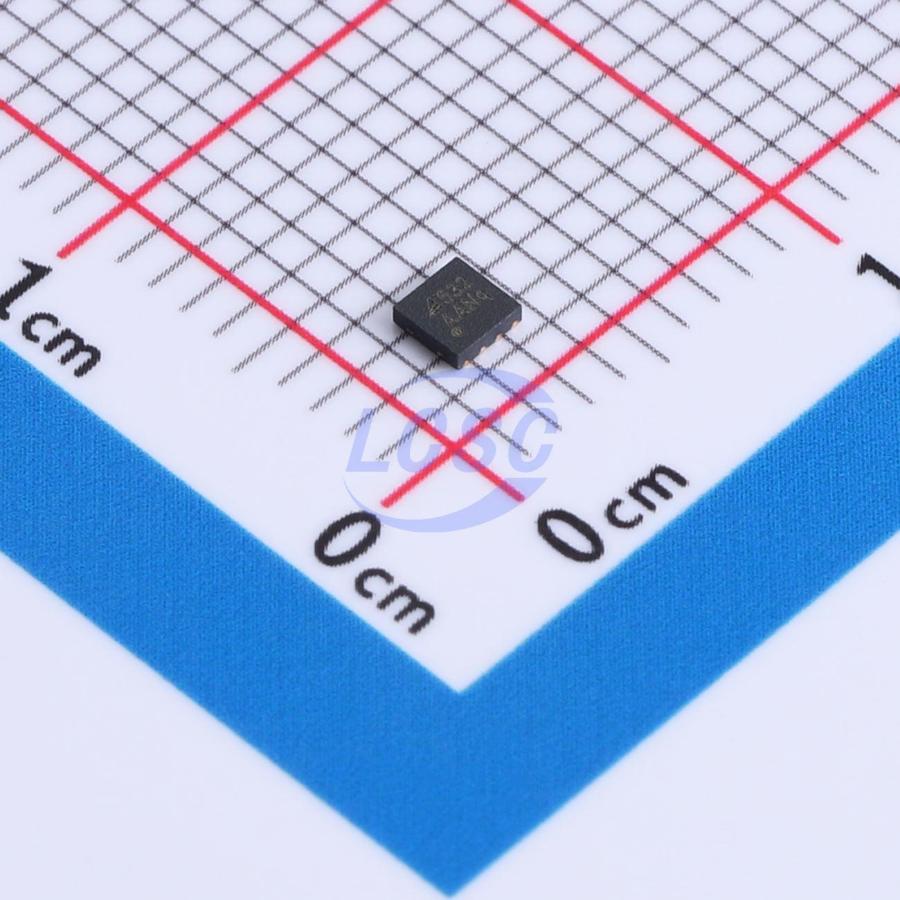

- package
- DFN-8(2x2)
- Quiescent Current
- 42uA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8 to 5.5V
- Slew Rate
- 0.16V/us
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · MSOP8 · 5 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | +In | input | Non-inverting input of the amplifier. |
| 2 | -Vs | power in | Negative power supply. It is normally tied to GND. |
| 3 | -In | input | Inverting input of the amplifier. |
| 4 | Out | output | Output of the amplifier. |
| 5 | +Vs | power in | Positive power supply. Typically, the voltage is from 1.8 V to 5.5 V. |
절대 최대 정격
| Supply Voltage | 6V | |
| Input Voltage (-Vs) | -0.2V | |
| Input Voltage (+Vs) | 0.2V | |
| Input Current: +IN, -IN | 20mA | |
| Current at Supply Pins | 50mA | |
| TJ Maximum Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40 to 125°C | |
| Supply Voltage Range | 1.8 to 5.5V |
열 특성
- theta ja
- 210
등급 · 신뢰성
- esd cdm
- 2
- esd hbm
- 7
오더링 코드
- FR
- MSOP8
