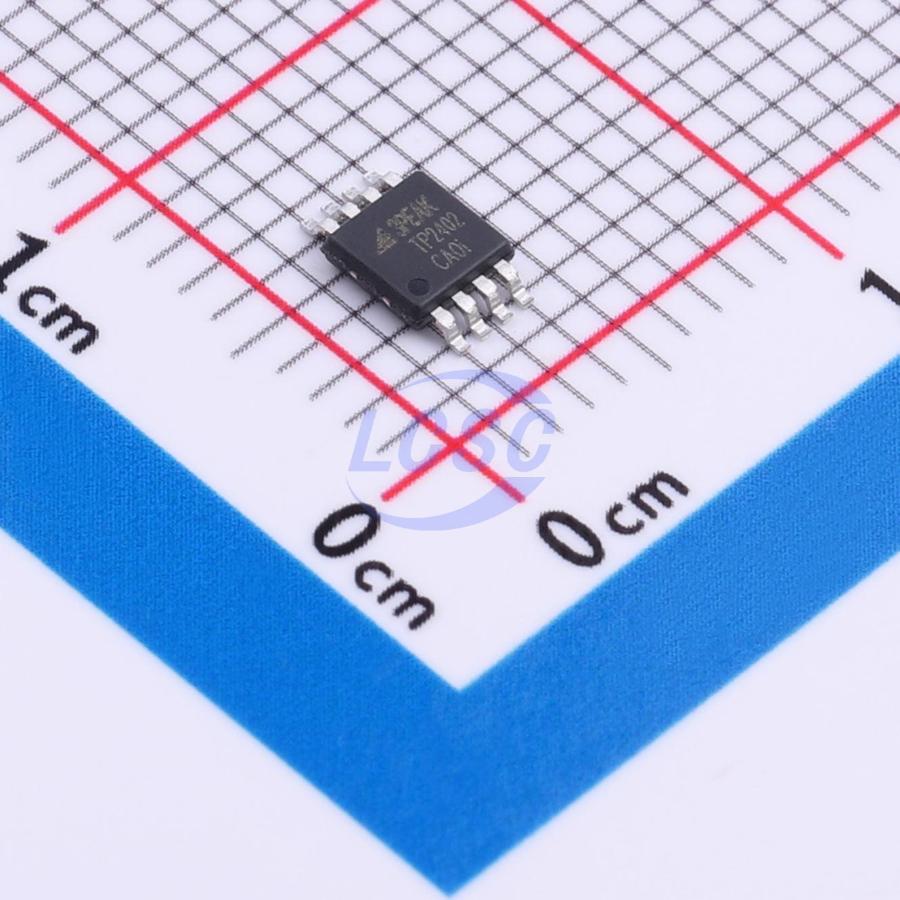

TP2402-VR

op amp

국내 재고 없음

이 부품에 대한 견적을 요청하시면 판매자들이 가격을 제시합니다.

주요 스펙 요약(32)

Common Mode Rejection Ratio: 100dB
Common Mode Rejection Ratio: 100dB
features: ESD protection;EMI filtering/RF suppression;Reverse-phase input protection
features: ESD protection;EMI filtering/RF suppression;Reverse-phase input protection
Gain Bandwidth Product: 20MHz
Gain Bandwidth Product: 20MHz
Ib Input Bias Current: 0.3pA
Ib Input Bias Current: 0.3pA
Input Offset Current Ios: 0.001pA
Input Offset Current Ios: 0.001pA
Input Offset Voltage Drift Vos Tc: 1uV/℃
Input Offset Voltage Drift Vos Tc: 1uV/℃
Input Offset Voltage Vos: 300uV
Input Offset Voltage Vos: 300uV
Input Voltage Noise Density: 7.3nV/√Hz@1kHz
Input Voltage Noise Density: 7.3nV/√Hz@1kHz
Number Of Channels: 2
Number Of Channels: 2
Operating Temperature: -40℃~+125℃
Operating Temperature: -40℃~+125℃
Output Current: 130mA
Output Current: 130mA
package: MSOP-8
package: MSOP-8
Quiescent Current: 3.5mA
Quiescent Current: 3.5mA
Rail To Rail: Rail-to-Rail Input, Rail-to-Rail Output
Rail To Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.2 to 5.5V
Single Supply: 2.2 to 5.5V
Slew Rate: 25V/us
Slew Rate: 25V/us
