주요 스펙 요약(15)
- Common Mode Rejection Ratio
- 125dB
- features
- Built-in compensation
- Gain Bandwidth Product
- 7MHz
- Ib Input Bias Current
- 30pA
- Input Offset Current Ios
- 25pA
- Input Offset Voltage Drift Vos Tc
- 2uV/℃
- Input Offset Voltage Vos
- 200uV
- Input Voltage Noise Density
- 25nV/√Hz@1kHz
- Operating Temperature
- -40℃~+125℃
- Output Current
- 32mA

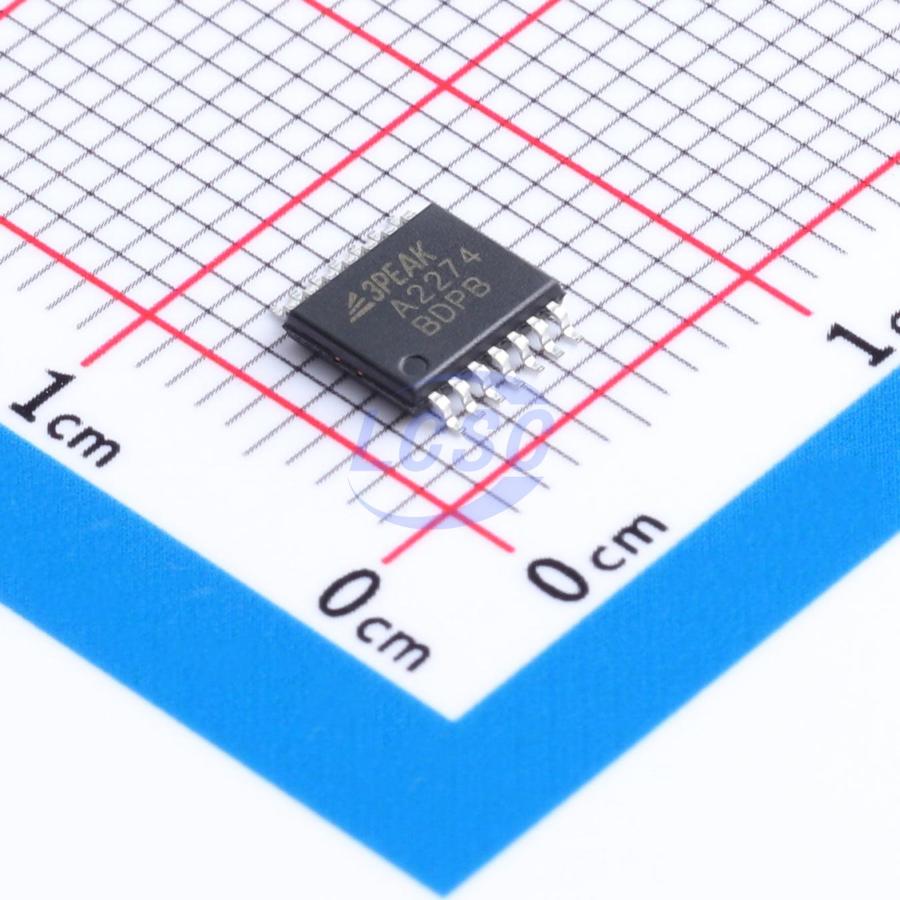

- package
- TSSOP-14
- Quiescent Current
- 1mA
- Rail To Rail
- Rail-to-rail output
- Single Supply
- 3.1 to 36V
- Slew Rate
- 20V/us
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · TSSOP8 · 5 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | Out | output | Output |
| 2 | -VS | power in | Negative power supply |
| 3 | +In | input | Non-inverting input |
| 4 | -In | input | Inverting input |
| 5 | +VS | power in | Positive power supply |
절대 최대 정격
| Supply Voltage (+VS) - (-VS) | 40V | |
| Voltage on Input and Output Pin | -0.3 to +0.3V |
권장 동작 조건
| Operating Temperature Range | -40 to 125°C |
열 특성
- theta ja
- 191
- theta jc
- 44
등급 · 신뢰성
- esd cdm
- 2
- esd hbm
- 3
오더링 코드
- TS2R
- TSSOP8 Tape and Reel
