주요 스펙 요약(16)
- Common Mode Rejection Ratio검증
- 100dB
- Dual Supply
- -3V~-900mV;900mV~3V
- Gain Bandwidth Product
- 18kHz
- Ib Input Bias Current
- 1pA
- Input Offset Current Ios
- 1pA
- Input Offset Voltage Drift Vos Tc
- 500nV/℃
- Input Offset Voltage Vos
- 100uV
- Input Voltage Noise Density
- 170nV/√Hz@1kHz
- Number Of Channels검증
- 4
- Operating Temperature
- -40℃~+125℃
- Output Current
- 20mA

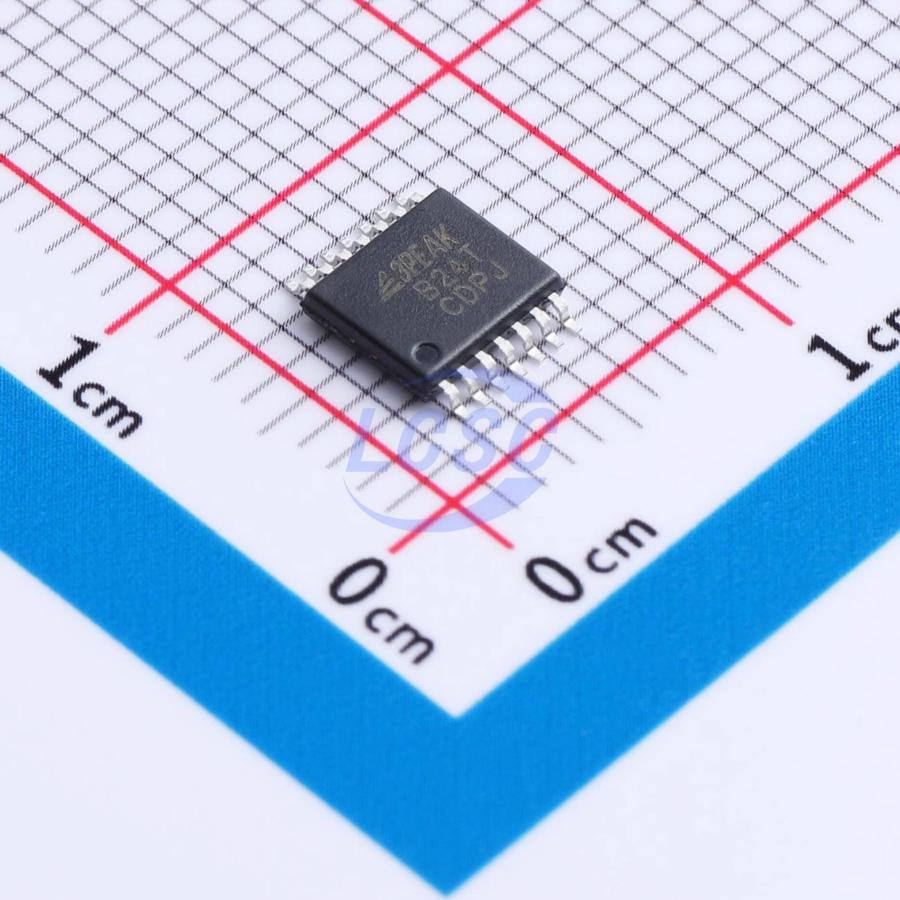

- package
- TSSOP-14
- Quiescent Current
- 600nA
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply검토
- 1.8 to 6V데이터시트: true (p.1)
- Slew Rate검증
- 0.01V/us
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · 14-Pin TSSOP · 14 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | +Vs | power in | Positive Power Supply |
| 2 | -In B | input | Inverting Input of Amplifier B |
| 3 | +In B | input | Non-Inverting Input of Amplifier B |
| 4 | Out B | output | Amplifier Output B |
| 5 | -In C | input | Inverting Input of Amplifier C |
| 6 | +In C | input | Non-Inverting Input of Amplifier C |
| 7 | Out C | output | Amplifier Output C |
| 8 | -Vs | power in | Negative Power Supply |
| 9 | -In D | input | Inverting Input of Amplifier D |
| 10 | +In D | input | Non-Inverting Input of Amplifier D |
| 11 | Out D | output | Amplifier Output D |
| 12 | -In A | input | Inverting Input of Amplifier A |
| 13 | +In A | input | Non-Inverting Input of Amplifier A |
| 14 | Out A | output | Amplifier Output A |
절대 최대 정격
| Supply Voltage | 6.5V | |
| Input Voltage | -0.3 to +0.3V | relative to rails |
| Input Current | 10mA | |
| Maximum Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40 to 125°C | |
| Supply Voltage | 1.8 to 6.0V | single supply |
등급 · 신뢰성
- esd cdm
- 1.5
- esd hbm
- 6
오더링 코드
- -TR
- Tape and Reel, 14-Pin TSSOP
