주요 스펙 요약(19)
- Common Mode Rejection Ratio
- 100dB
- Dual Supply
- -
- features
- Built-in compensation
- Gain Bandwidth Product
- 6MHz
- Ib Input Bias Current
- 1pA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 1pA
- Input Offset Voltage Drift Vos Tc
- 1uV/℃
- Input Offset Voltage Vos
- 3mV
- Input Voltage Noise Density
- 19nV/√Hz@1kHz
- Maximum Power Supply Range Vdd Vss
- 6V
- Number Of Channels
- 2
- Operating Temperature
- -40℃~+125℃
- Output Current
- 100mA
- Quiescent Current
- 600uA
- Slew Rate
- 4.5V/us

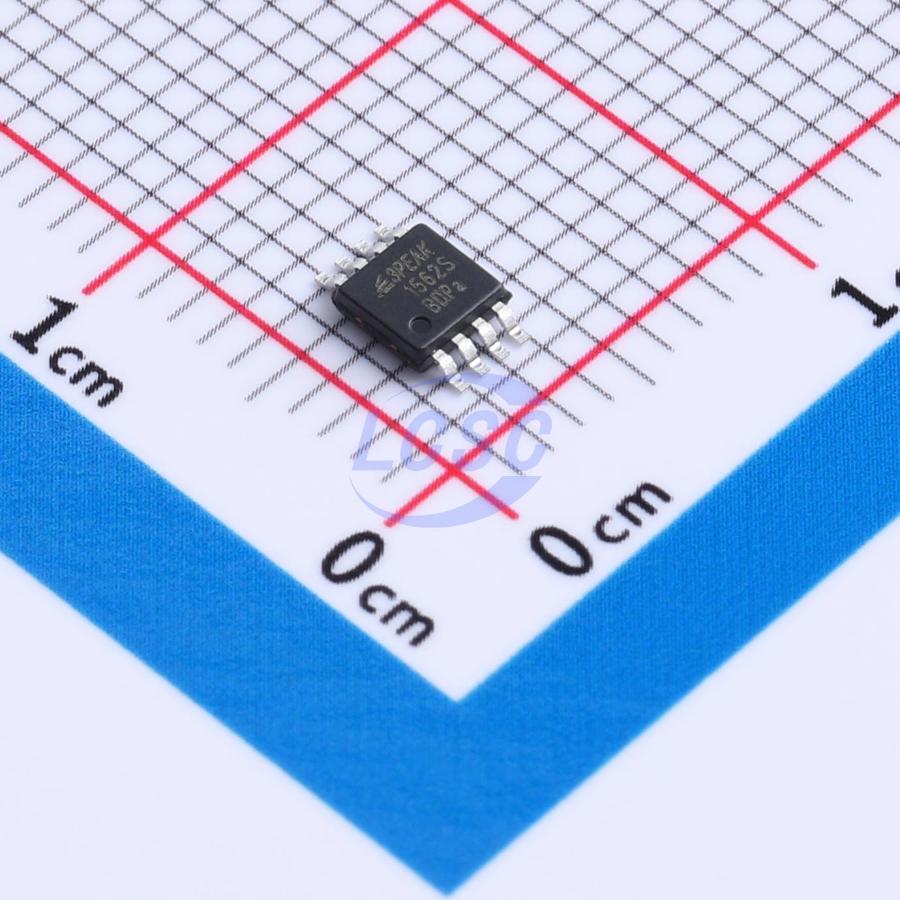

- package
- MSOP-8
- Rail To Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5 to 6V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)절대 최대 정격
| Supply Voltage, (+VS) – (−VS) | 6.5V | |
| Input Voltage | 0.3V | beyond supply |
| Maximum Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40 to 125°C | |
| Supply Voltage Range | 2.5 to 6V |
열 특성
- cond
- SOP8
- unit
- °C/W
- theta ja
- 158
- theta jc
- 43
등급 · 신뢰성
- aec q
- AEC-Q100
- esd cdm
- 1.5
- esd hbm
- 4
- unit cdm
- kV
- unit hbm
- kV
오더링 코드
- S
- SOP8
