주요 스펙 요약(19)
- Common Mode Rejection Ratio
- 120dB
- Dual Supply
- -
- features
- -
- Gain Bandwidth Product
- 1MHz
- Ib Input Bias Current
- 25pA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 25pA
- Input Offset Voltage Drift Vos Tc
- 2uV/℃
- Input Offset Voltage Vos
- 300uV
- Input Voltage Noise Density
- 30nV/√Hz@1kHz
- Maximum Power Supply Range Vdd Vss
- 36V
- Number Of Channels
- 2
- Operating Temperature
- -40℃~+125℃
- Output Current
- 70mA
- Quiescent Current
- 150uA
- Slew Rate
- 700V/ms

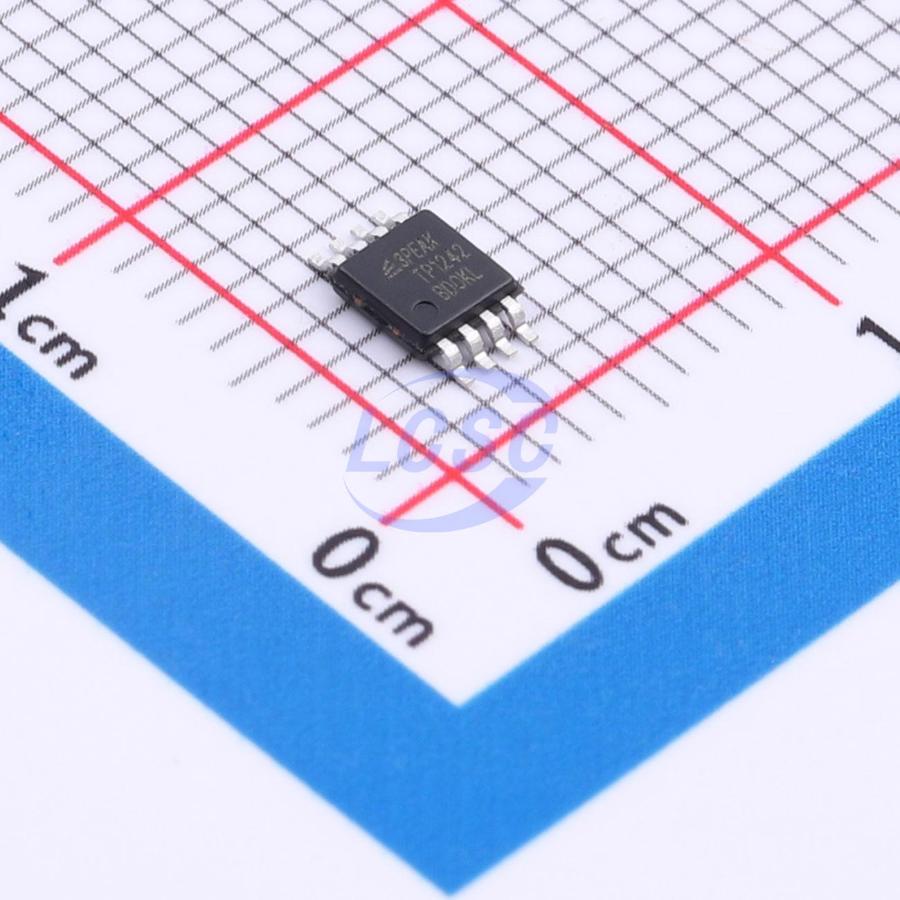

- package
- MSOP-8
- Rail To Rail
- Rail-to-rail output
- Single Supply
- 4.5 to 36V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · SOP8 · 5 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | Out | output | Output |
| 2 | -VS | power in | Negative power supply |
| 3 | +In | input | Non-inverting input |
| 4 | -In | input | Inverting input |
| 5 | +VS | power in | Positive power supply |
절대 최대 정격
| Supply Voltage | 40V | |
| Input Voltage | 36V | |
| Maximum Junction Temperature | 150℃ |
권장 동작 조건
| Operating Temperature Range | -40 to 125℃ |
열 특성
- unit
- °C/W
- theta ja
- 158
- theta jc
- 43
- qualifier
- SOP8
등급 · 신뢰성
- unit
- kV
- esd cdm
- 1
- esd hbm
- 2
오더링 코드
- VR
- Tape and Reel
