주요 스펙 요약(19)
- Common Mode Rejection Ratio
- 120dB
- Dual Supply
- -18V~-1.5V;1.5V~18V
- features
- -
- Gain Bandwidth Product
- 900kHz
- Ib Input Bias Current
- 60pA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 500pA
- Input Offset Voltage Drift Vos Tc
- 7uV/℃
- Input Offset Voltage Vos
- 3mV
- Input Voltage Noise Density
- 70nV/√Hz@1kHz
- Maximum Power Supply Range Vdd Vss
- 36V
- Number Of Channels
- 2
- Operating Temperature
- -40℃~+125℃
- Output Current
- 30mA
- Quiescent Current
- 110uA
- Slew Rate
- 500V/ms

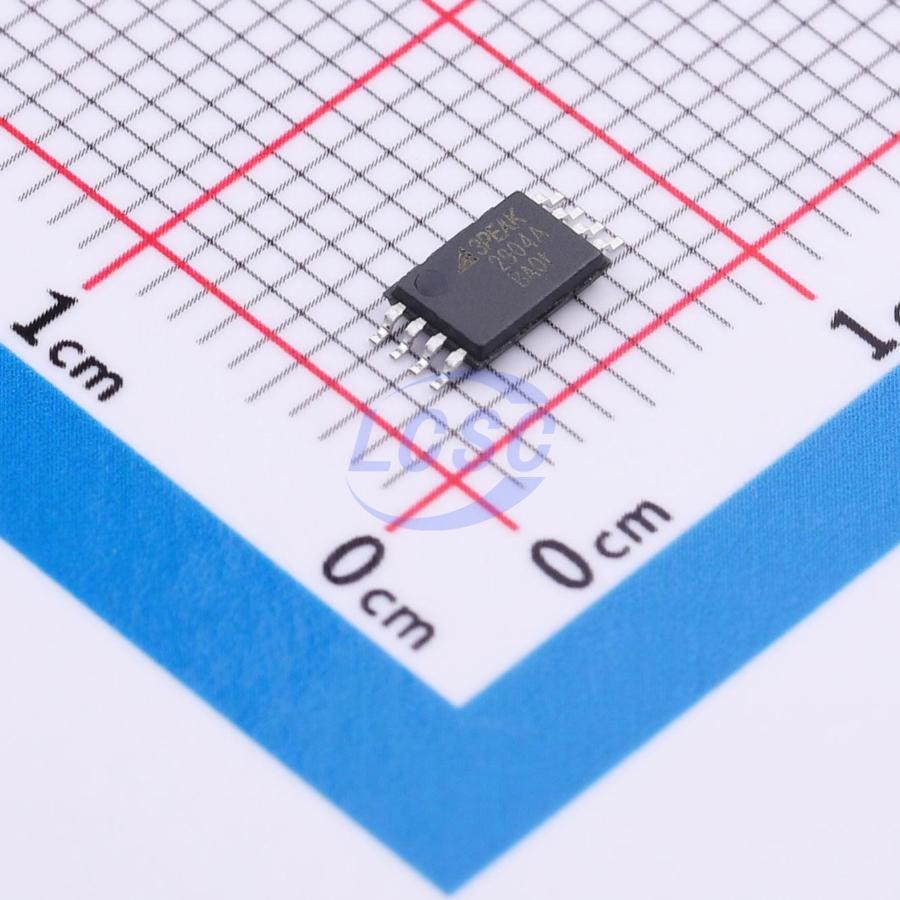

- package
- TSSOP-8
- Rail To Rail
- Rail-to-rail output
- Single Supply
- 3 to 36V
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · TSSOP8 · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | Out A | output | Output |
| 2 | -In A | input | Inverting input |
| 3 | +In A | input | Non-inverting input |
| 4 | -Vs | power in | Negative power supply |
| 5 | +In B | input | Non-inverting input |
| 6 | -In B | input | Inverting input |
| 7 | Out B | output | Output |
| 8 | +Vs | power in | Positive power supply |
절대 최대 정격
| Supply Voltage (+VS) – (−VS) | 40V | |
| Input Voltage | -0.3 to +0.3V | |
| Maximum Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40 to 125°C |
열 특성
- theta ja
- 191
- theta jc
- 44
등급 · 신뢰성
- esd cdm
- 2000
- esd hbm
- 3000
오더링 코드
- TSR
- Tape and Reel (TSSOP8)
