주요 스펙 요약(19)
- Common Mode Rejection Ratio검증
- 120dB
- Dual Supply
- -18V~-1.5V;1.5V~18V
- features
- -
- Gain Bandwidth Product
- 900kHz
- Ib Input Bias Current
- 60pA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 60pA
- Input Offset Voltage Drift Vos Tc
- 7uV/℃
- Input Offset Voltage Vos
- 1mV
- Input Voltage Noise Density
- 70nV/√Hz@1kHz
- Maximum Power Supply Range Vdd Vss
- 36V
- Number Of Channels검증
- 2
- Operating Temperature
- -40℃~+125℃
- Output Current
- 25mA
- Quiescent Current
- 120uA
- Slew Rate검증
- 500V/ms
- package

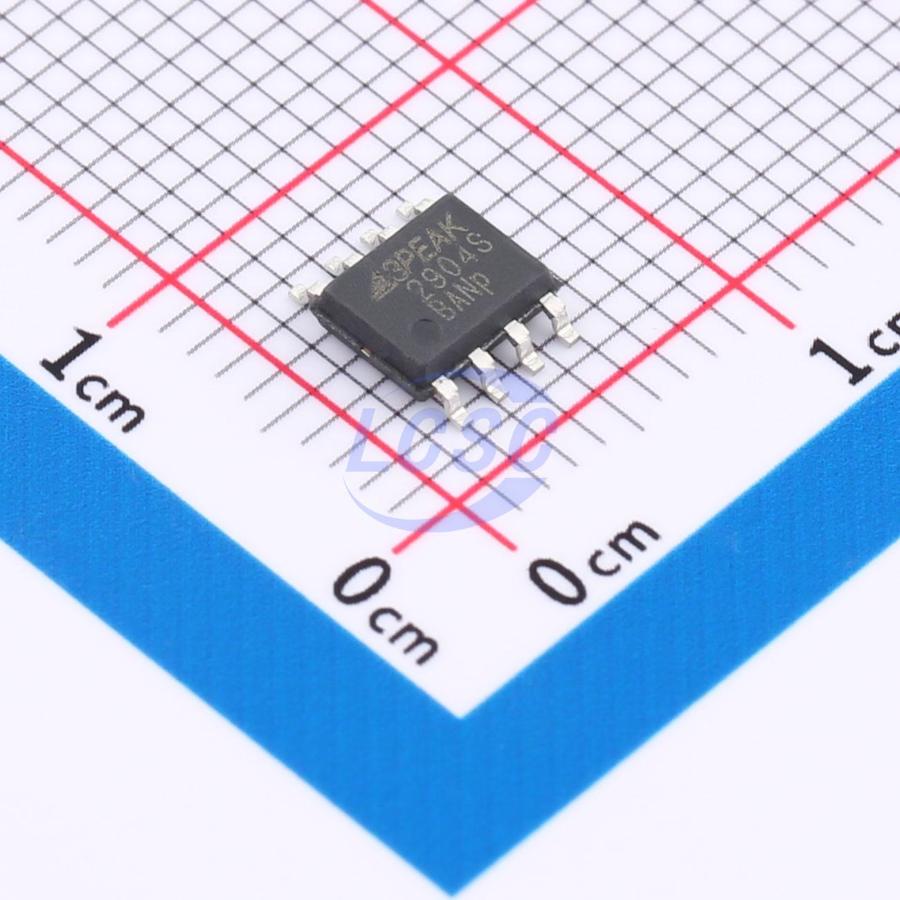

- SOP-8
- Rail To Rail
- Rail-to-rail output
- Single Supply검토
- 3 to 36V데이터시트: true (p.1)
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · SOIC-8 · 8 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | Out A | output | Output of Amplifier A |
| 2 | +In A | input | Non-inverting Input of Amplifier A |
| 3 | -In A | input | Inverting Input of Amplifier A |
| 4 | +In B | input | Non-inverting Input of Amplifier B |
| 5 | -In B | input | Inverting Input of Amplifier B |
| 6 | Out B | output | Output of Amplifier B |
| 7 | -Vs | power in | Negative Supply Voltage |
| 8 | +Vs | power in | Positive Supply Voltage |
절대 최대 정격
| Supply Voltage | 40V | |
| Maximum Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40 to 125°C | |
| Supply Voltage Range | 3 to 36V |
열 특성
- theta ja
- 158
- theta jc
- 43
등급 · 신뢰성
- aec q
- Qualified for AEC-Q100 Reliability Test
- esd cdm
- 1 kV
- esd hbm
- 3 kV
오더링 코드
- -SO1R-S
- SOP8 package, Tape and Reel
