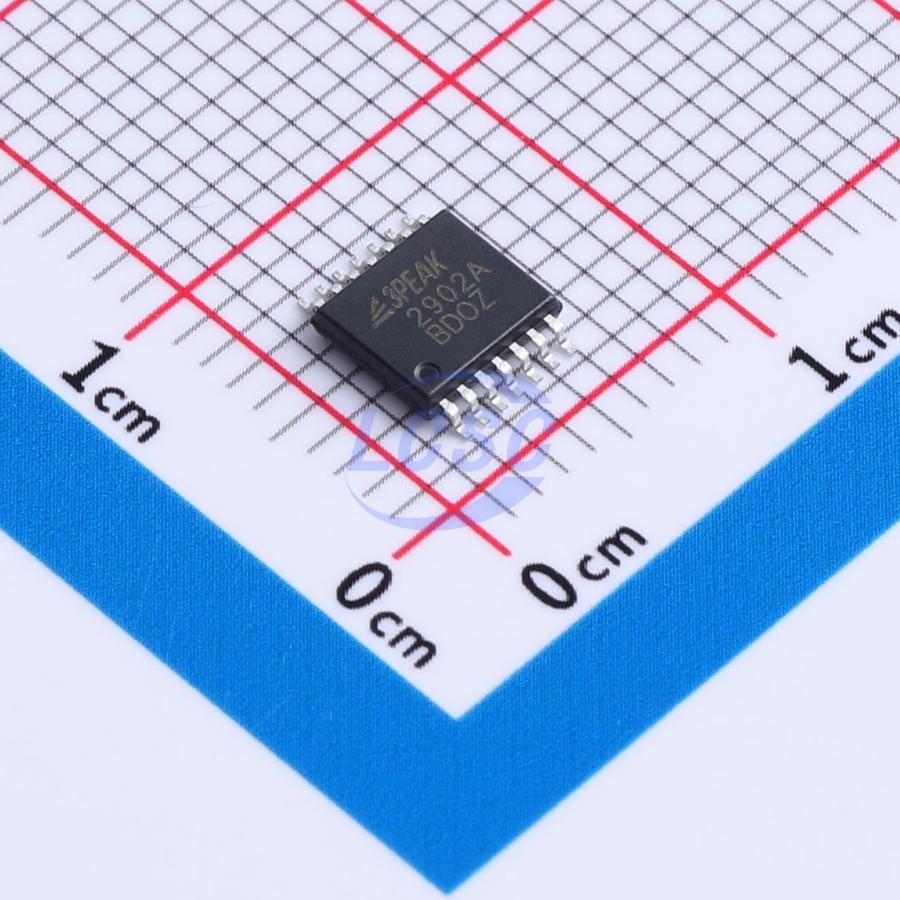

주요 스펙 요약(19)
- Common Mode Rejection Ratio
- 120dB
- Dual Supply
- -18V~-1.5V;1.5V~18V
- features
- -
- Gain Bandwidth Product
- 900kHz
- Ib Input Bias Current
- 500pA
- Input Offset Current Drift Ios Tc
- -
- Input Offset Current Ios
- 500pA
- Input Offset Voltage Drift Vos Tc
- 7uV/℃
- Input Offset Voltage Vos
- 3mV
- Input Voltage Noise Density
- 70nV/√Hz@1kHz
- Maximum Power Supply Range Vdd Vss
- 36V
- Number Of Channels
- 4
- Operating Temperature
- -40℃~+125℃
- Output Current
- 25mA
- Quiescent Current
- 200uA
- Slew Rate
- 500V/ms
- package
- TSSOP-14
- Rail To Rail
- Rail-to-rail output
- Single Supply
- -
데이터시트 추출 정보
데이터시트에서 직접 추출한 사실 (출처 명시)핀 배치 · TSSOP14 · 14 핀
| # | Name | Type | Function |
|---|---|---|---|
| 1 | Out A | output | Amplifier A Output |
| 2 | +In A | input | Amplifier A Positive Input |
| 3 | -In A | input | Amplifier A Negative Input |
| 4 | +In B | input | Amplifier B Positive Input |
| 5 | -In B | input | Amplifier B Negative Input |
| 6 | Out B | output | Amplifier B Output |
| 7 | Out C | output | Amplifier C Output |
| 8 | +In C | input | Amplifier C Positive Input |
| 9 | -In C | input | Amplifier C Negative Input |
| 10 | Out D | output | Amplifier D Output |
| 11 | +In D | input | Amplifier D Positive Input |
| 12 | -In D | input | Amplifier D Negative Input |
| 13 | -Vs | power in | Negative Supply Voltage |
| 14 | +Vs | power in | Positive Supply Voltage |
절대 최대 정격
| Supply Voltage, (+VS)– (-VS) | 40V | |
| Input Voltage | (-VS) – 0.3 to (+VS) + 0.3 | |
| Differential Input Voltage | (+VS) - (-VS) | |
| Input Current: +IN, –IN | 10mA | ± |
| Maximum Junction Temperature | 150°C |
권장 동작 조건
| Operating Temperature Range | -40°C | min |
| Operating Temperature Range | 125°C | max |
열 특성
- unit
- °C/W
- theta ja
- 180
- theta jc
- 35
등급 · 신뢰성
- unit
- V
- esd cdm
- 2000
- esd hbm
- 3000
오더링 코드
- TR
- Tape and Reel
